Instructions for Operating The Pocket Socket

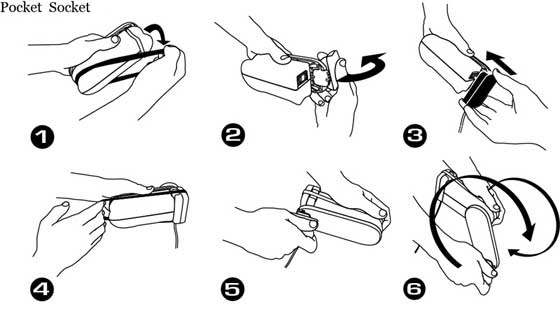

Step 1 After taking your Pocket Socket from its box remove the rubber band so that the arm and handle swing freely.
Step 2 Next, turn the handle of the arm 180 degrees so that it is facing away from the generator body. It should click in place. When brand new it will be stiff. Especially when rotating back into storage position. After some use/wear it will loosen up.
Step 3 Plug your charger into the socket on the Pocket Socket.
Step 4 Replace the rubber band around the Pocket Socket. The rubber band will help you grip the unit. You may also find placing the rubber band around the unit and your hand will help you grip the body of the unit.
CAUTION! Ensure you can safely rotate the arm of the unit without striking yourself or anyone else or any other object.
Step 5 Firmly grasp the body of the Pocket Socket with one hand and grip the knob on the end of the arm with the other.
Step 6 Rotate the arm in a circular motion to generate power. You should crank the arm at a speed of at least two revolutions per second, fast is better. Initially you will feel some resistance, which will then lessen after a few seconds. If you feel the resistance increase again, it means you’ve slowed down and need to speed back up.
- Finding the appropriate speed and technique will take a little practice. After you have spent a little time acclimating yourself to the Pocket Socket, you should develop an easy rhythm that is not strenuous to sustain.
- Although the Pocket Socket is easy to crank, you may eventually tire. When you find yourself slowing down, stop and take a rest, cranking slower is harder and may not generate enough power to charge your device.
- The generator can be cranked in either direction, with either hand.
- Try to rotate your hands around each other instead of trying to hold the generator still and moving one hand in a circle. This prevents one arm from tiring faster than the other.
- Experiment with what works best for you. As long as the handle is cranked at approximately 2 revolutions per second the generator it will produce enough power to charge your device.
- The charge rate is limited by your charger, not the K-TOR® portable generator. The generator produces enough power to charge at the same rate as a wall socket.
